Plastic granulator塑料造粒機

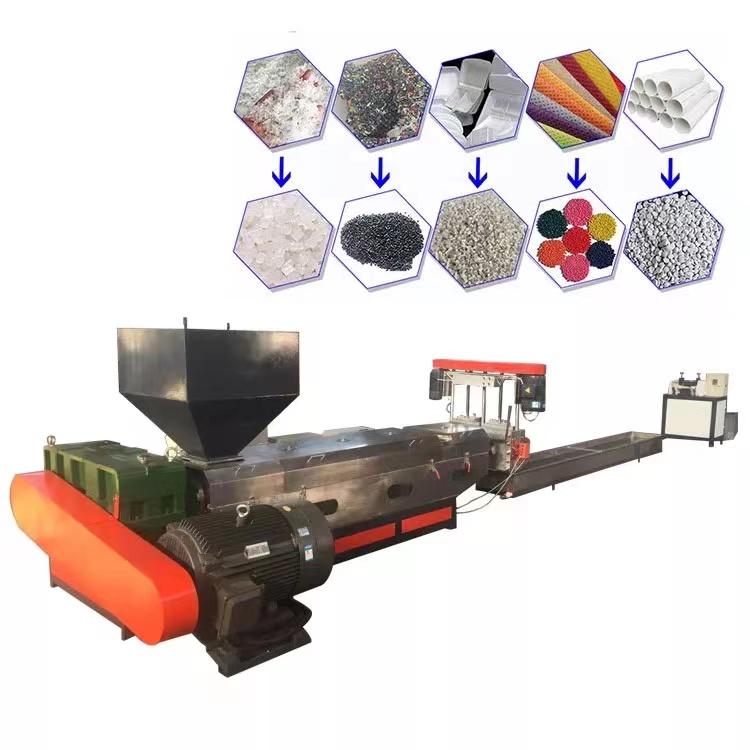

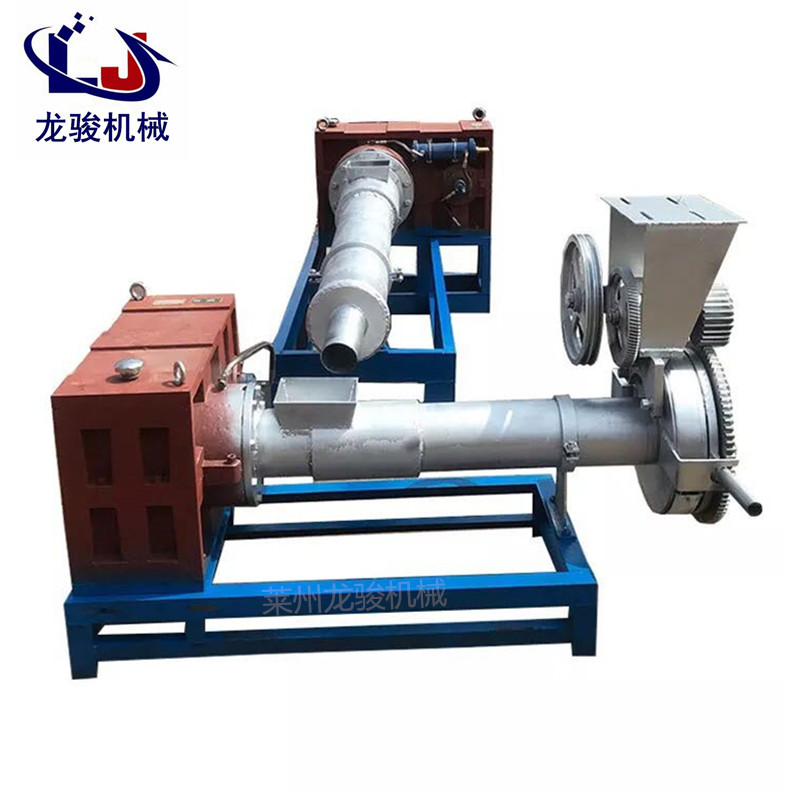

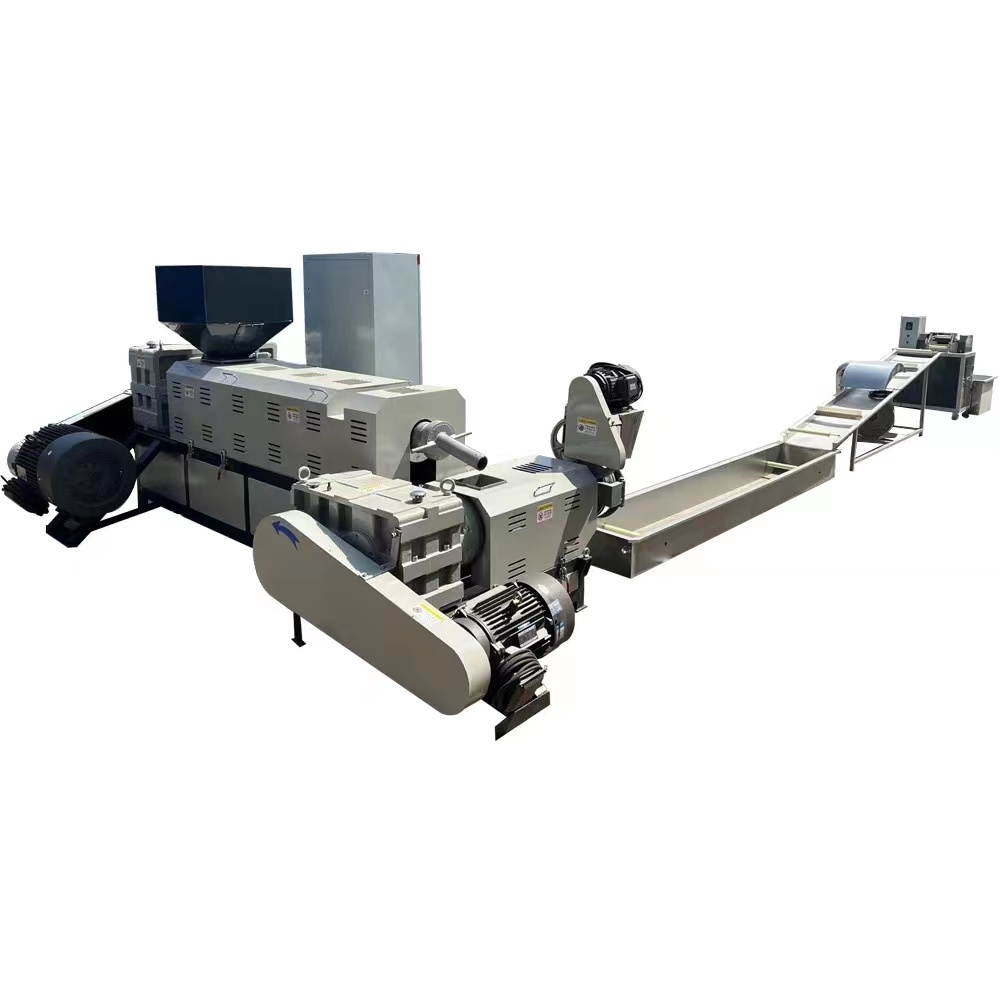

Plastic granulator equipment is a plastic molding machinery composed of extrusion system, transmission system, and heating and cooling system, mainly used in the field of plastic particle processing. The main unit adopts an extruder structure, and the machine head is divided into two types: oblique angle and right angle according to the direction of the material flow. The thickness uniformity of the extruded layer is adjusted through the mold core, pressure equalization ring, and mold sleeve. The external is equipped with heating and temperature measurement devices. Modern equipment further adopts multi-stage temperature control technology. Through temperature control components and cooling components, multiple sets of temperature detection blocks are used to detect the front, middle, and rear parts of the granulator respectively, in order to achieve more accurate temperature control

塑料造粒機設備是由擠壓系統、傳動系統和加熱冷卻系統組成的塑料成型機械，主要應用于塑料顆粒加工領域。其主機采用擠塑機結構，機頭根據料流方向分為斜角與直角兩種類型，通過模芯、均壓環及模套調節擠包層厚度均勻性，外部配備加熱與測溫裝置，現代設備進一步采用多級溫控技術，通過溫控組件和冷卻組件，使用多組溫度檢測塊對造粒機前部、中部和后部分別檢測，以實現更精準的控溫。

The equipment includes auxiliary devices such as pay off, straightening, and preheating. The straightening device solves the eccentricity problem caused by wire core bending through structures such as drum and pulley. The control system integrates heating, cooling, and process parameter measurement modules, and coordinates the operation of the main and auxiliary machines through electrical instruments to achieve dynamic control of temperature, pressure, and traction speed. The temperature control strategy includes PID control, segmented heating and cooling, and intelligent temperature control system. The core components are made of high-strength 38CrMoAlA screws and quenched 45 # steel barrels, combined with external heating coils and bottom cooling fans to improve plasticization efficiency. The machine head is equipped with a parallel 15 hole discharge structure and a heating ring to ensure discharge stability. The cutting system processes the cooled strip into granular products through rolling blades.

該設備包含放線、校直、預熱等輔助裝置，其中校直裝置通過滾筒式、滑輪式等結構解決線芯彎曲導致的偏心問題。控制系統集成加熱、冷卻與工藝參數測量模塊，通過電器儀表協調主輔機運作，實現溫度、壓力及牽引速度的動態調控，溫度控制策略包括PID控制、分段加熱與冷卻以及智能溫控系統等 。核心部件采用高強度38CrMoAlA螺桿和淬火處理的45#鋼機筒，配合外置加熱圈與底部冷卻風機提升塑化效率。機頭增設平行15孔出料結構及加熱圈保障出料穩定性，切粒系統通過滾動刀片將冷卻后的條料加工為顆粒狀成品。
